Corner Stove Kitchen: How to plan the layout

Create a beautiful corner stove kitchen design layout for your next kitchen remodeling project! Find out the math behind it and which appliances work best for your corner stove kitchen project.

Is a corner stove right for your kitchen cabinet layout?

Deciding whether or not to add a corner stove to a kitchen design depends on a variety of factors. In some cases it is done to add interest to a long straight run, in others its to save space and gain functionality to the over all design. It also could resolve the requirement for a larger stove that does to fit well on the adjacent walls of the kitchen. Here are a few questions to ask yourself as you plan the design;

1. Do we need a focal point in a given corner?
2. Can we improve the layout overall by placing the stove on a corner?
3. Does the ventilation preference allow for a corner stove?
4. Do we need extra countertop space?

Selecting the right appliances

Generally speaking almost any stove, cooktop or range top will work in the corner stove kitchen design with some exceptions. The tricky part comes in with the addition of the ventilation preferences, this is because the adjacent upper cabinetry sits on the 90 degree axis and the corner stove sits on a 45 degree axis (see sample plan below). This means we have to pay particular attention to the wall located behind the stove/ventilation unit and the depth of the appliances, these all need to be in sync for proper configuration. For this application it is best to use a stove without a back which is know as a slide in stove or model with an island trim which is a low profile back.

Doing the math for a corner stove kitchen

To figure out the placement of the adjacent cabinets you will need to know the width of the appliances and the depth of both the lower and upper cabinetry. We will also need to account for the desired counter top overhangs and fillers on the base cabinets.

1. We will start with a desired 36” Stove width plus the total countertop overhangs (39″) and multiply it by 0.7071 which equals 27.5769, we can round that up to 27.6”.
2. Next we need to add the depth of our base cabinet to that figure, 27.6” + 24” = 51.6”.
3. Now we can plot that distance from the corner of the room to each of the adjacent base cabinets.
4. The wall behind the corner stove can be placed after the upper cabinets have been figured out using the same method. Special considerations should be made when using a microwave as it will be a different depth than the upper cabinets in most cases.
5. When setting that appliances you will notice that the stove will need to be set back from the face of the adjacent cabinets to allow for the doors/drawers to operate freely, we typically set the stove back approx. 4”-6” and leave about 2” behind the stove to the wall.

Adding a recessed niche to your corner stove kitchen

As an added bonus, the corner stove kitchen allows for a 6” – 8” deep recessed niche to be located just below the ventilation unit. This is possible because the wall behind the appliances is a false wall with a void behind it. This option is typically not possible when a stove is placed on wall in a standard configuration since it’s usually on an exterior wall.

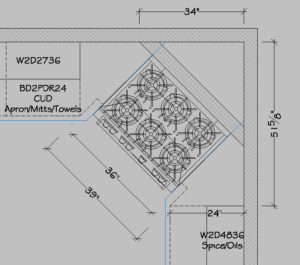

Let’s review a sample plan

Here’s our finished design with a 36″ stove. As you can see on the plans there is a void behind the stove wall which is a perfect place to run the duct work, electrical requirements and plumbing work. Note: If the walls are out of square and/or not plumb it will further complicate the calculations.
